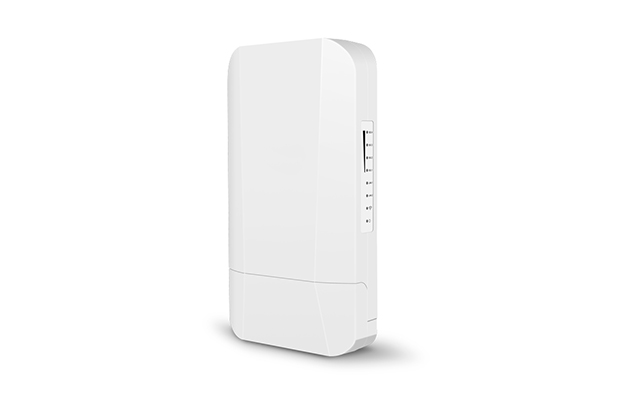

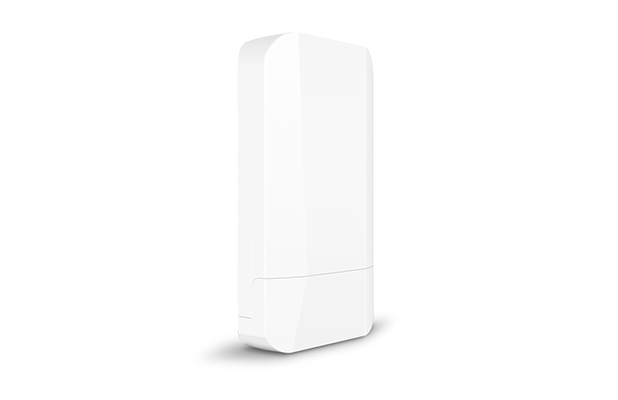

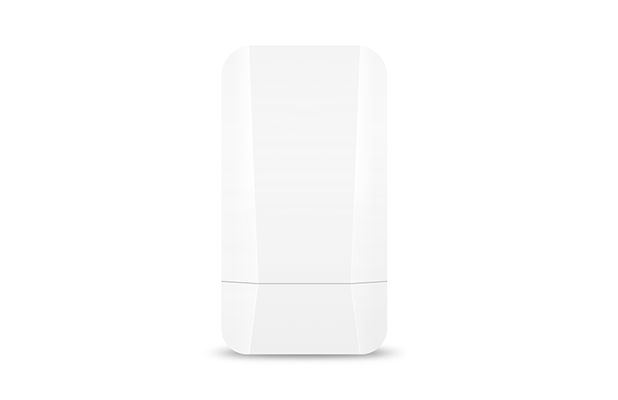

1. WOBICOM B400 is outdoor CPE, Wireless speed up to 300Mbps with LED display to configure the PT/PTMP Connection For IP camera or wifi coverage.2. it has built in 8dBi antenna, which can reach a long distance of transmission point to point 1km.3. it can be used in pairs which has already been pre-configured, ready to install. 4. IP65 protection level, waterproof, dust proof, lighting protection. Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃5. 2*100M WAN/LAN ports, Support PoE and DC power supply.
Hardware Configuration | |
| Model | B400 |
Main chip | High-performance enterprise chip |
Main frequency | 580MHz |
Wireless technology | 2.4G:300M 802.11b/g/n MIMO Technology |
Memory | 8MB DDR RAM |
| Flash | 2MB |

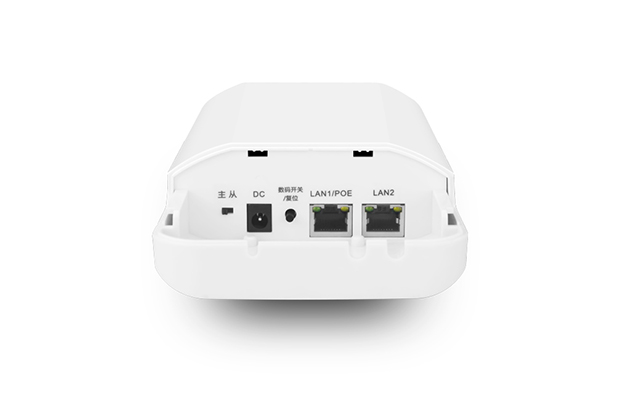

Network Interface | 2*10/100 Mbps adaptive network interface |
Button | 1*Digital switch/reset button, short press the digital tube to display the value plus one, long press for 15 seconds to restore factory settings |

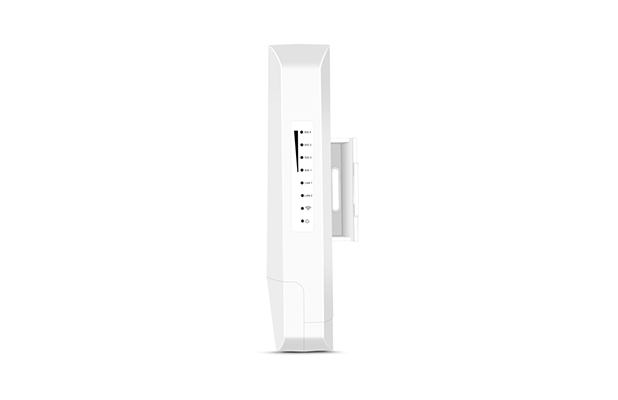

Indicator light | LAN network interface status indicator, power indicator |
Power supply | 24V 0.5A non-standard POE power supply; DC 12V 1A, power consumption <10W |
Working environment | Temperature: -30℃～+55℃(work), -40℃～+70℃(storage) Humidity (non-condensing): 10% to 90% (working), 5% to 95% (storage) |
Package Size | 22x8.5x11.5cm 2pcs/box |
Product weight | Gross weight: 0.66Kg Net weight: 0.55Kg |
Antenna | Built-in dual-polarization high-gain 12dBi directional plate antenna (horizontal wave half-angle 45°, vertical wave half-angle 45°) |
RF characteristics | |
Frequency Range | ISM band: 2.300GHz ~ 2.4835GHz |
Channel distribution | 2.4G：1、2、3、4、5、6、7、8、9、10、11、12、13、 32、33、37、38、42、43 |
Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Output Power | 802.11n: @MCS7:14±2DB, @MCS0:16±2DB 802.11g: @54M:15±2DB, @6M:17±2DB 802.11b: @11M:17±2DB, @1M:19±2DB |
Receiving sensitivity | 802.11n: -70dbm@MCS7, -88dbm@MCS0 802.11g: -72dbm@54Mbps, -88dbm@6Mbps 802.11b: -85dbm@11Mbps, -94dbm@1Mbps |
EVM | 802.11n: ≤-28 DB 802.11g: ≤-25 DB 802.11b: ≤-10 DB |
Frequency deviation | ±20ppm |
Software features | |
Operating mode | Master AP, slave AP (dial code conversion) |
Networking method | Point-to-point, point-to-multipoint (within 8 points) |
Management method | Chinese WEB remote management |
Internet | Static IP/dynamic acquisition |
Bridge management | LAN bridge list real-time remote management equipment |
Wireless management | WLAN configuration/WLAN analyzer/Radio configuration/wireless users |
System | Device description, time zone and time configuration, login password modification, backup/restore system settings |
System update | Local update and online update based on WEB browser |
Restart | Restart immediately / scheduled |
