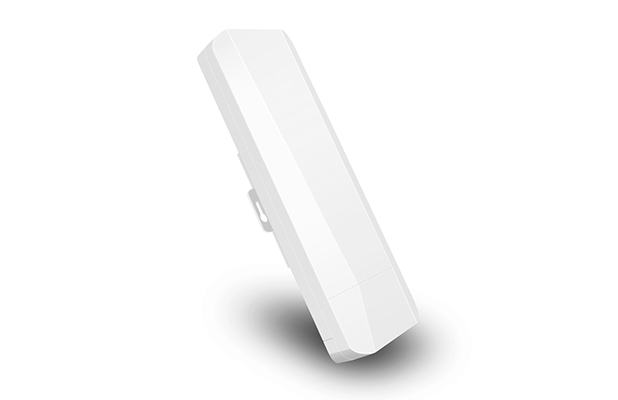

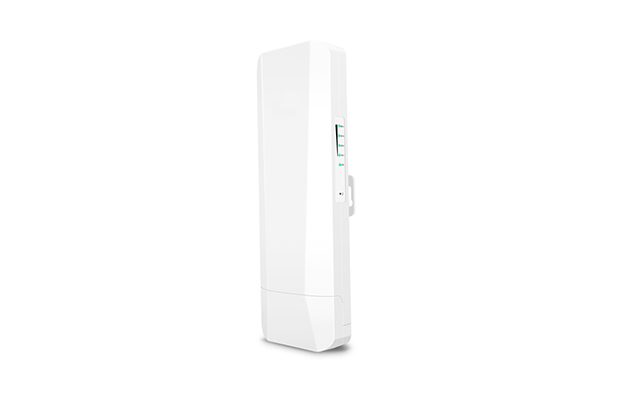

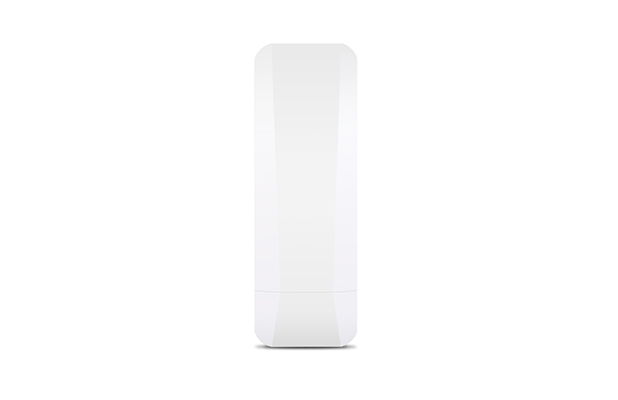

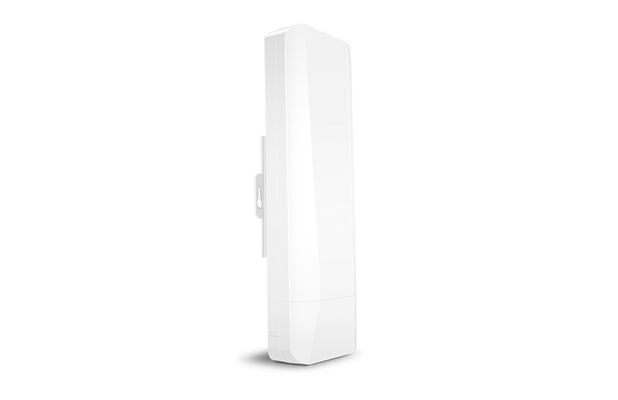

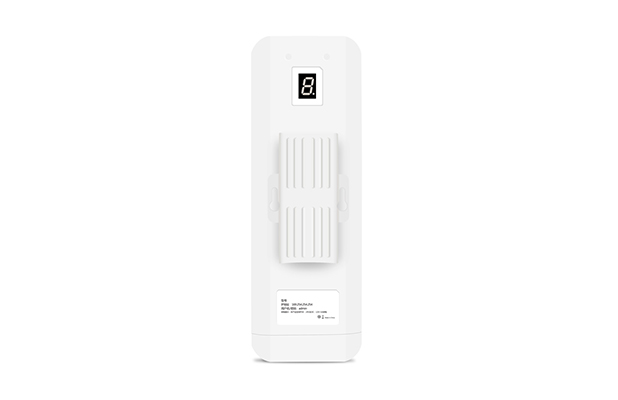

1. WOBICOM N620 is outdoor CPE, Wireless speed up to 900Mbps with LED display to configure the PT/PTMP Connection For IP camera or wifi coverage.2. it has built in 14dBi antenna, which can reach a long distance of transmission point to point 3km.3. It can be used in pairs which has already been pre-configured, ready to install. 4. IP65 protection level, waterproof, dust proof, lighting protection. Operating Temperature: -30℃-55℃ Storage Temp: -40℃-70℃5. 1*1000M WAN+1*100M LAN ports, Support 24 PoE and DC power supply.
Hardware Configuration | |
| Model | N620 |
Main chip | High-Performance Enterprise Chip |
Main frequency | 580MHz |
Wireless technology | 5.8G, 900Mbps, 802.11ac MIMO technology |
Memory | 64MB DDR RAM |
| Flash | 8MB |
Network Interface | 1*100 Mbps+1*1000 Mbps adaptive network interface |
Button | 1*Digital switch/reset button, short press the digital tube to display the value plus one, long press for 15 seconds to restore factory settings |
Indicator light | LAN network interface status indicator, power indicator |
Power supply | 24V 0.5A non-standard POE power supply; DC 12V 1A, power consumption <10W |
Working environment | Temperature: -30℃～+55℃(work), -40℃～+70℃(storage) Humidity (non-condensing): 10% to 90% (working), 5% to 95% (storage) |
Package Size | 28x10x9.5cm |
Product weight | Gross weight: 0.66Kg Net weight: 0.55Kg |
Antenna | Built-in dual-polarization high-gain 14dBi directional plate antenna (horizontal wave half-angle 60°, vertical wave half-angle 60°) |
RF characteristics | |
Frequency Range | ISM band: 4.900GHz ~ 5.850GHz |
Channel distribution | 5.8G：36、40、44、48、52、56、60、64、149、153、157、161、 182、186、190、194 |
Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
Output Power | 11a @54M:25±2DB, @6M:27±2DB 11n @MCS7:23±2DB, @MCS0:25±2DB |
Receiving sensitivity | 11a: 72dbm@54Mbps, -90dbm@6Mbps 11n: -70dbm@MCS7, -90dbm@MCS0s |
EVM | 802.11n: ≤-28 DB 802.11a: ≤-25 DB |
Frequency deviation | ±20ppm |
Software features | |
Operating mode | Master AP, slave AP (dial code conversion) |
Networking method | Point-to-point, point-to-multipoint (within 8 points) |
Management method | Chinese WEB remote management |
Internet | Static IP/dynamic acquisition |
Bridge management | LAN bridge list real-time remote management equipment |
Wireless management | WLAN configuration/WLAN analyzer/Radio configuration/wireless users |
System | Device description, time zone and time configuration, login password modification, backup/restore system settings |
System update | Local update and online update based on WEB browser |
Restart | Restart immediately / scheduled |
