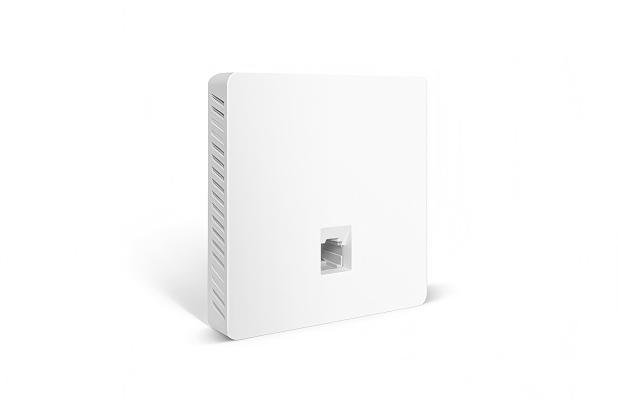

The MS1200M is an in-wall panel dual-band wireless access point that utilizes the 802.11a/b/g/n/ac Wave2 wireless network standard. It operates in both the 2.4GHz and 5GHz ISM wireless frequency bands, meeting the demand for high-speed wireless internet access for up to 64 concurrent users. It features a gigabit Ethernet interface and supports remote PoE power supply based on the 802.3af/at standard. In 2.4GHz 802.11n mode, it can support speeds of up to 300Mbps, and in 5GHz 802.11ac mode, it can support speeds of up to 867Mbps, providing a total wireless rate of up to 1200Mbps.
1) Based on the standard hardware design of operators, it has the ability to resist electromagnetic interference in accordance with the requirements of YD/T 968-2010 "Electromagnetic Compatibility Requirements and Measurement Methods for Telecommunication Terminal Equipment". The overvoltage and overcurrent protection meets the requirements of YD/T 993-2006 "Technical Requirements and Test Methods for Lightning Protection of Telecommunication Terminal Equipment" for analog lightning surge, power line induction, power line contact, etc., with a protection capability of common mode 6KV and differential mode 1.5KV. The ability to withstand power surges meets the requirements of YD/T 1082-2011 "Technical Requirements and Test Methods for Overvoltage, Overcurrent Protection, and Basic Environmental Adaptability of Access Network Equipment". It features enhanced heat dissipation with optimized airflow, ensuring that overheating issues do not cause system crashes during hot summer days, fully guaranteeing real-time, long-term, stable, and efficient transmission of user network data, and enhancing the user experience.
2) It supports the 802.11a/b/g/n/ac protocols and provides wireless access speeds of 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, with a total wireless access speed of up to 1200Mbps.
3) The WiFi RF circuitry is optimized to ensure wider signal coverage, higher rates, and longer transmission distances.
4) It is equipped with integrated software that can be used independently in small-scale scenarios and can be used in conjunction with gateway devices for batch deployment in medium to large-scale scenarios, meeting the requirements of various complex network environments.
5) It supports remote management through cloud platforms and WeChat mini programs, allowing real-time remote viewing, configuration, upgrades, maintenance, etc.
6) Continuous product updates, feature enhancements, and performance optimizations ensure the adaptation to various network environments and improve the user experience.
| Hardware configuration | |
Main Chip | MT7621DAT+MT7603EN+MT7613BEN |
Frequenc | MIPS dual-core 880MHz |
Memory | 128MB |
Flash | 16MB |
Wireless Technology | - 2.4G WiFi: 2x2 802.11b/g/n (Theoretical maximum speed up to 300Mbps) - 5.8G WiFi: 2x2 (2-stream) MU-MIMO 802.11a/n/ac Wave2 (Theoretical maximum speed up to 867Mbps) - TxBF (Transmit Beamforming): Beamformingtechnology that concentrates the wireless signal in specific directions, enhancing the transmission and recept on performance of the signal. |

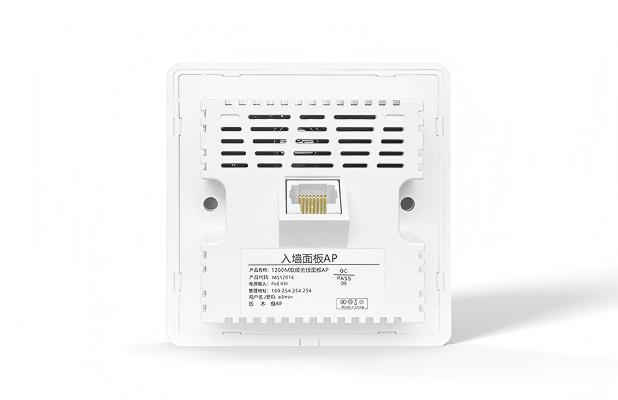

Device Interfaces | WAN PoE*1/LAN*1 10/100/1000Mbps adaptive |
Buttons | Reset button for factory reset (long press for 6 seconds to reset) |
Indicators | Status indicators |
Antennas | Built-in 2.4G 2dBi FPC antenna * 2 Built-in 5G 2dBi FPC antenna * |
