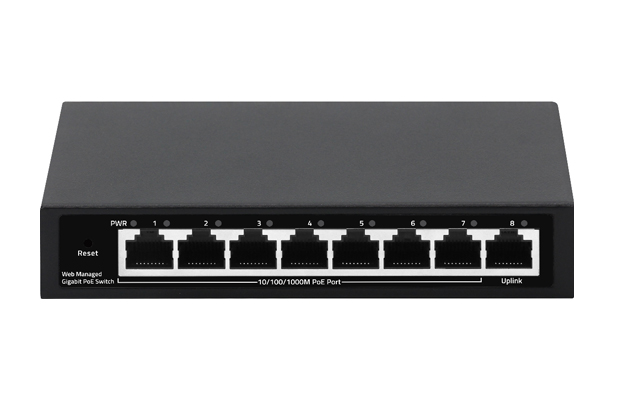

WOBICOM 8 Port Gigabit Web Managed Ethernet POE Switch adopts high-quality and high-speed network IC. It has a fan less and silent design, which completely solves the problem of high noise when small switches are deployed in an office environment. This switch has 7* Gigabit PoE RJ45 ports,+ 1* Gigabit Uplink Ethernet port, which can provide seamless connection for 10/100/1000M Ethernet, supports WEB management, and is easy to manage and maintain. This product can be widely used in security network video surveillance, hotels, campuses, and small and medium-sized enterprises. Network engineering and other occasions.
I/O Interface | |
Power | DC 52V |
Ethernet | 7* Gigabit POE RJ45 Ports 1* Gigabit Uplink RJ45 Port |
Performance | |
Bandwidth | 16Gbps |
Pack Forward Rate | 11.9Mpps |
Pack Cache | 12Mbytes |
MAC Address | 8K |
Jumbo Frame | 9216 bytes |
Transfer Mode | Storage & Forward |
MTBF | 100,000 Hours |
Standard | |
Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE802.3x (Flow Control) |
PoE Protocol | IEEE802.3af （15.4W） IEEE802.3at （30W） |
Network Medium | 10Base-T : Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX : Cat5 or above UTP/STP(≤100m) 1000Base-TX : Cat5 or above UTP/STP(≤100m) |
Industry Standard | EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge) |
Certification | |
Safety Certificate | CE, FCC, RoHS |
Environment Standard | |
Working Environment | Working Temperature：：-10~50°C Storage Temperature：-40~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
Physical Structure | |
Size | Product Size: 145*84*28mm Package Size: 245*190*60mm Product Net-Weight: 0.33KG Product Gross-Weight: 0.84KG |
Packing Info | Carton size: 520*320*400mm Packing Qty: 20 units Packing weight: 17.8KG |
Packaging List | 1. Switch 1 PCS 2. Adapter 1PCS 3. Manual 1PCS 4. Certificate 1PCS |

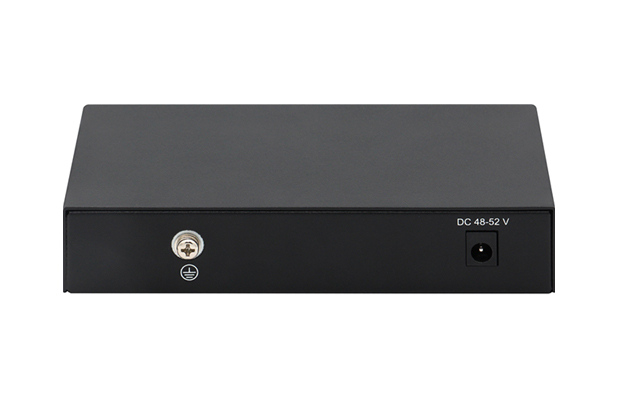

Power Voltage | Adapter Input: AC 110-264V Output: 52V 1.85A Switch Input Voltage: 48-52V |
Consumption | 5W |
Function Indicator | |
LED Indicator | PWR(Power Light), 1-8 (Link & Data) |
PWR | On: Powered on Off: Powered off |
1-8 (Link & Data) | On: Link Connecting Off: Link Off Flashing: Data transmitting |
Restart | Short press to restart Long press 5S to restore factory settings |
Order Info | |
ZX-AFGW-71 | 8 Port Gigabit Web Managed Ethernet POE Switch |
