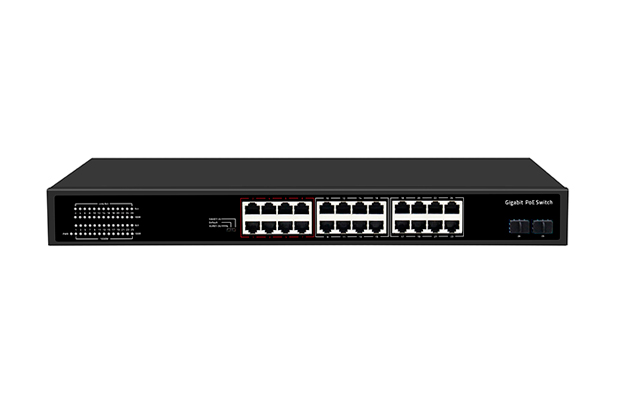

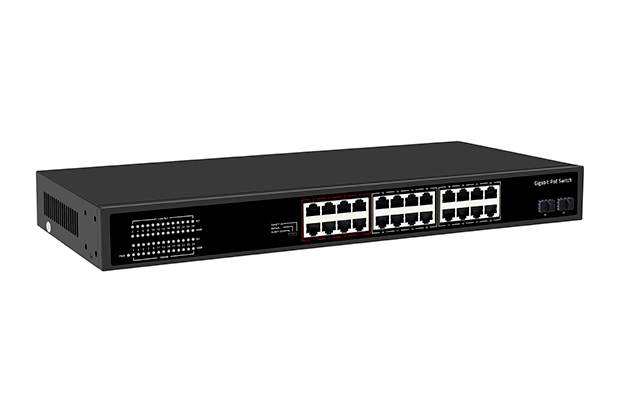

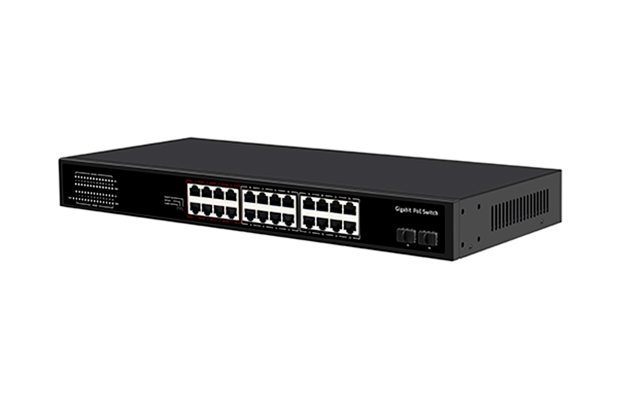

WOBICOM 26 Gigabit Ethernet Power Switches (POE switches), high-quality network IC and the most stable POE chips, POE switches provide seamless connection to 10 / 100 / 1000 M Ethernet, and the POE supply port can automatically detect and supply receiving devices meeting IEEE802.3af or IEEE802.3at standards, non-POE devices intelligently detect no power and only transmit data.POE technology (Power over Ethernet), Ethernet power supply technology, while also providing DC power supply technology for some IP-based terminals, such as IP phones, wireless access AP, network cameras, etc., DC receiving devices called powered devices.
I/O Interface | |
Power supply input | AC100-240V/50-60Hz |
Ethernet Network | 2410 / 100 / 1000Mbps PoE ports 2 Gigabit SFP ports |
Performance | |
Exchange capacity | 52Gbps |
Package forwarding rate | 38.68Mpps |
Package Cache | 4M |
MAC Address Table | 8K |
Giant frame | 9.6Kbytes |
Forward mode | Storage forwarding |
Standard | |
Network protocol | IEEE 802.3: Ethernet Media Access Control (MAC) protocol IEEE 802.3i:10BASE-T Ethernet IEEE 802.3u:100BASE-TX Fast Ethernet IEEE 802.3ab:1000BASE-T Gigabit Ethernet IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical Fiber) IEEE 802.3x: Flow Control |
PoE Standard | IEEE802.3af(15.4W) IEEE802.3at (30W) |
Industry Standards | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
Network media
| 10Base-T: Cat3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat5 Class or above UTP/STP (≤ 100m) Multimode optical fiber: 50/125,62.5/125,100 / 140um Single-mode optical fiber: 8/125,8.7/125,9 / 125,10 / 125um |
Certification | |
Safety Certification | CE, FCC, RoHS |
Environmental Standards | |
Working environment | Operating temperature: -20~50 °C Storage temperature: -40~85 °C Working humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation Working height: 10,000 inches max Storage height: 10,000 inches max |
Functional indication | |
Indicator lamp | PWR(Power indication), SW(dial code lamp), 1000M(chain street lamp), ACT (data lamp) |
Status | PWR: Normally lit Equipment powered on / Unlit Equipment Unpowered 1000M: Bright Gigabit / not Gigabit or Link ACT: always bright without data transmission / shiny data transmission / no link |
Dial-Up Code Definition | Default:1-24 port standard exchange, free communication for all ports VLAN:1-24 ports are isolated from each other and communicate with two optical ports Extend:17-24 port 10M mode, link extended to 250 m |
Physical specifications | |
Structural dimensions | Product Size: 440 * 204 * 44mm Package Dimensions: 500 * 290 * 85mm Product net Weight: 2.8KG Product gross weight: 3.3KG |
Boacking Information | Outer box dimensions: 520 * 445 * 300mm Quantity of quantity: 5 PCS Boacking weight: 17.5KG |

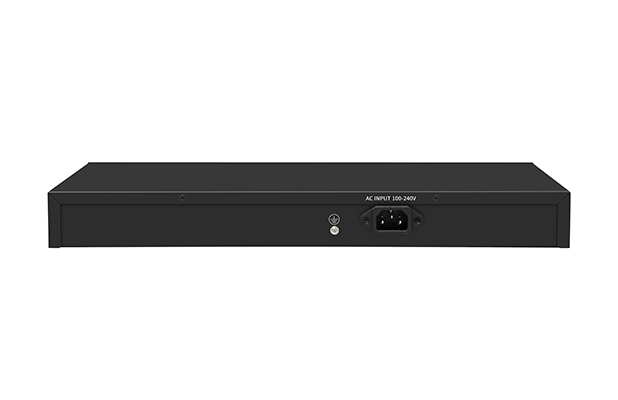

Supply voltage | Input voltage: AC100-240V/50-60Hz Power supply power: 52V/5.76A |
Boacking List | Switch: 1, manual: 1, certificate: 1, power cord: 1,1 pair of hanging ears |
Order Information | |
ZX901-AFG-242S-300 | 26 Gigabit smart POE switches 300W |
ZX901-AFG-242S-400 | 26 Gigabit smart POE switches 400W |
