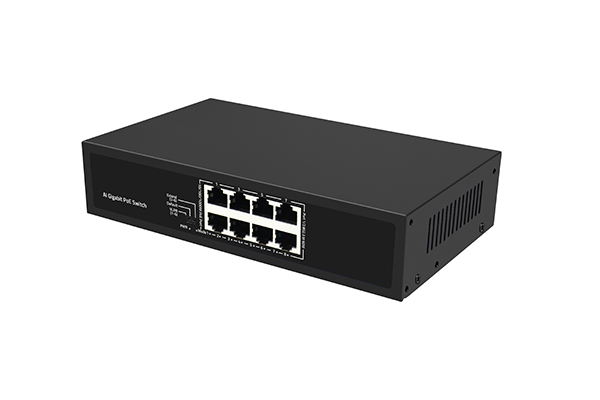

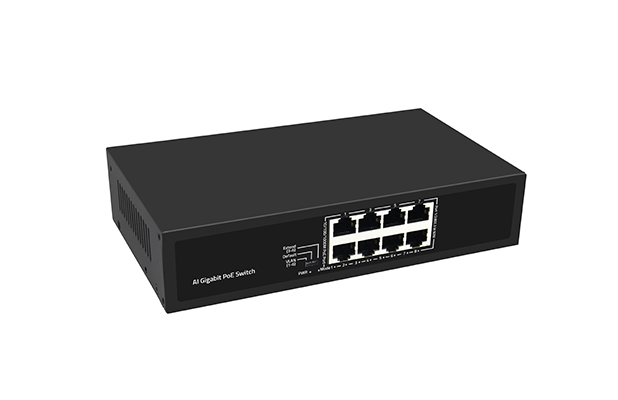

WOBICOM 8 Port Gigabit Intelligent Ethernet PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, the switch incorporates the latest AI functions, equipped with two types port priorities, PoE priority and Network priority, one-key smart. The PoE port meets the 802.3af or 802.3at standard. At the same time, port 1/2 supports HiPoE and the power can reach 60W; The power consumption indicators can help to understand the overall power consumption of the product easily. This series of PoE switches can provide seamless connection for 10/100M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.
I/O Interface | |

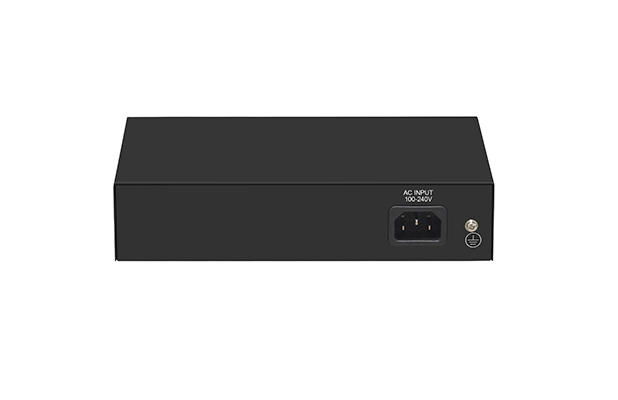

Power | Input: AC 100-240V, 50/60Hz |
Ethernet | 8 *10/100/1000M PoE Port |
Performance | |
Switching Capacity | 16Gbps |
Throughput | 11.9Mpps |
Packet Buffer | 1Mb |
MAC Address | 2K |
Jumbo Frame | 9216bytes |
Transfer Mode | Store and forward |
MTBF | 100000 hour |
Standard | |
Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
PoE Protocol
| IEEE802.3af （15.4W） IEEE802.3at （30W） IEEE802.3bt （60W） |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT)、 EN61000-4-5 (Surge) |
Network Medium
| 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m) |
Protection | |
Security Certificate | CE、FCC、RoHS |
Environment | |
Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
Indication | |

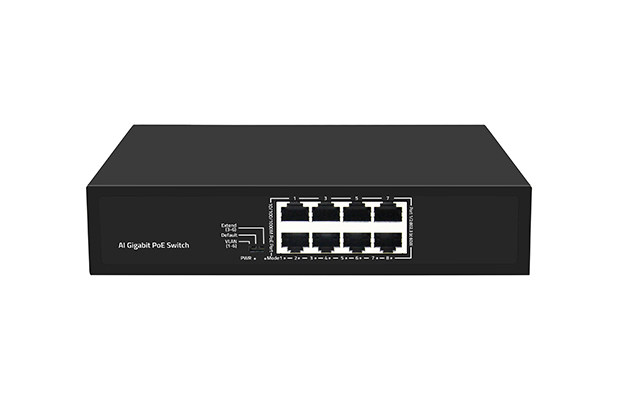

LED Indicators | PWR（power supply），Mode（DIP），1-8 Green（Link&Data） |
PWR | Lighting：Powered Un-Light：No Power |
Mode | Lighting：VLAN Un-Light：Default Flashing：Extend |
1-8 Green | Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect |
DIP Switch | VLAN, Default, Extend |
VLAN | Port Isolation, 1-6 port is isolated each other, but all can communicate with uplink port 7/8, AI enable |
Default | Normal mode, all port can communicate with each other, The port AI mode is closed. |
Extend | Extend Mode, 3-6 port support 250 meters transmission on 10Mbps/s ,AI enable |
Mechanical | |
Structure Size | Product Dimension (L*W*H): 200mm*118mm*44mm Package Dimension (L*W*H): 245mm*190mm*60mm N.W：0.6kg G.W：0.9kg |
Packing Info | Carton MEAS：505*320*400mm Packing Qty：20 units Packing Weight：19KG |
Power Voltage | Input Voltage ：AC 100-240 V Power supply：52V2.3A |
Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc |
Ordering Info | |
HR900-AXG-80N | 8-port 10/100/1000M AI PoE Switch |
