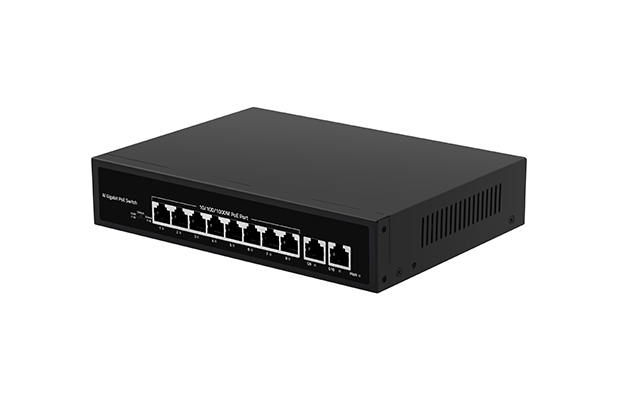

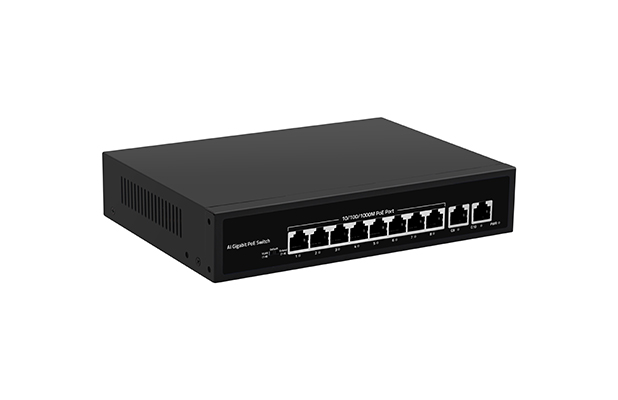

WOBICOM 10 Port Full Gigabit Intelligent Standard PoE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access AP, network cameras, etc.), but also provides DC power for the device. Technically, these devices that receive DC power are called powered devices.
I/O Interface | |
Power | AC100-240V50/60Hz |

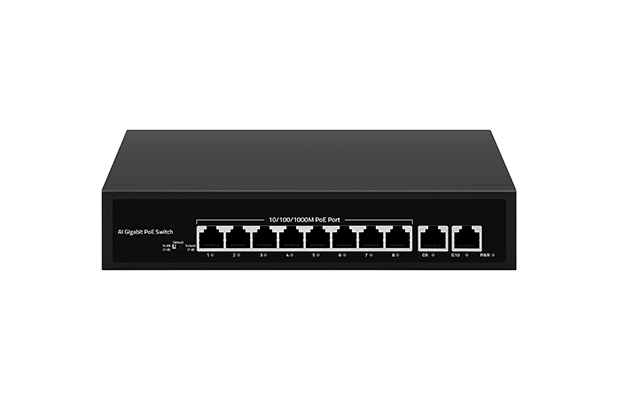

Ethernet | 8* Gigabit PoE Ethernet Ports 2* Gigabit Uplink Ethernet Port |
Chipset
| 2*RTL8367S RTL8238B |
Performance | |
Bandwidth | 20Gbps |
Pack forward rate | 14.88Mpps |
Memory cache | 448Kb |
MAC address | 2K |
Jumbo Frame | 9216bytes |
Transfer mode | Store and forward |
MTBF | 100000 Hours |
Standard | |
Network Protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
PoE Protocol
| IEEE802.3af(15.4W) IEEE802.3at(30W) |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
|
Network Medium
| 10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
Certificate | |
Safety Certification | CE, FCC, RoHS |
Environment Standard | |
Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
Indicator | |
LED Indicator | PWR (Power)，1-10 Green Light (Link&Data) |
PWR
| On: Powered on Off: Powered off |
1-10 Green Light (Link&Data)
| On: Link normal Off: Link blocked Flashing: Data transmitting |
DIP Switch | VLAN: Isolation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog) |
Physical Specification | |
Structure Size | Product Dimension: 220*161*44mmm Package Dimension: 315*215*85mm N.W: 0.88kg G.W: 1.38kg |
Packaging Info | Carton MEAS: 445*445*335mm Packing Qty: 10 units Packing Weight: 14.8KG |

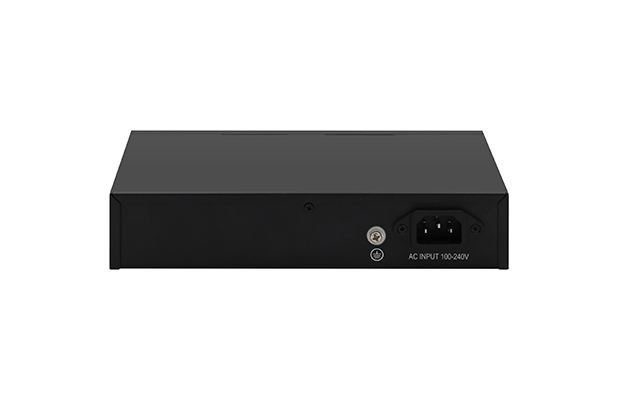

Power Voltage | Input Voltage: AC 100-240 V 50-60Hz Power Supply: 52V2.3A |
Power | ＜30W |
Packaging List | Switch 1 PC, Power cord 1 PC, User manual 1 PC, Certification 1 PC |
Order Info | |
ZX900-AFG-82N | 10 Port Gigabit PoE Switch |
