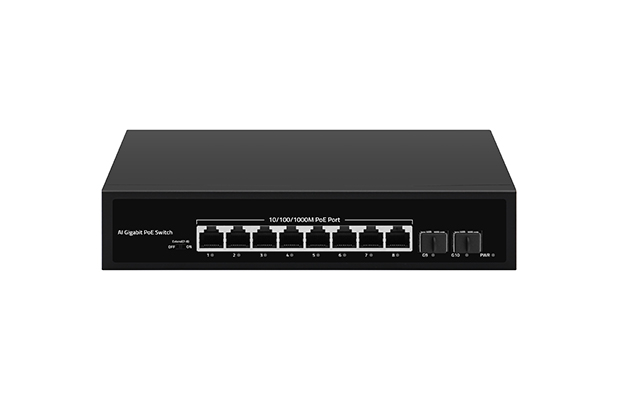

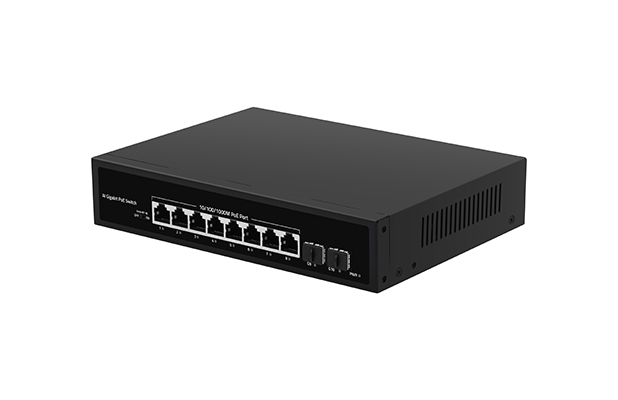

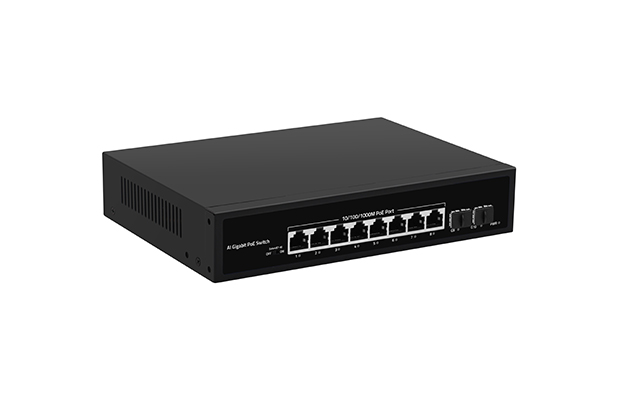

WOBICOM 10 Port Full Gigabit Intelligent Standard PoE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access AP, network cameras, etc.), but also provides DC power for the device. Technically, these devices that receive DC power are called powered devices.
I/O Interface | |
Power | AC100-240V50/60Hz |
Ethernet | 8* Gigabit PoE Ports 2* Gigabit SFP Ports |
Chipset | 2*RTL8367S RTL8238B |
Performance | |
Bandwidth | 20Gbps |
Pack forward rate | 14.88Mpps |
Memory cache | 448Kb |
MAC address | 2K |
Jumbo Frame | 9216bytes |
Transfer mode | Store and forward |
MTBF | 100000 Hours |
Standard | |
Network Protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
PoE Protocol
| IEEE802.3af(15.4W) IEEE802.3at(30W) |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
Network Medium
| 10Base-T : Cat3, 4, 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
Optical Medium
| Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
Certificate | |
Safety Certification | CE, FCC, RoHS |
Environment Standard | |
Working Environment | Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing |
Indicator | |
LED Indicator | PWR (Power)，1-10 Green Light (Link&Data) |
PWR
| On: Powered on Off: Powered off |
1-10 Green Light (Link&Data)
| On: Link normal Off: Link blocked Flashing: Data transmitting |
DIP Switch | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled Extend: Link extension mode, 7-8 ports force 10M, link 250M (enable POE watchdog) |
Physical Specification | |
Structure Size | Product Dimensions: 220*161*44mm Package Dimensions: 315*215*85mm Product N.W: 0.88kg Product G.W: 1.38kg |
Packing Info | Carton Dimensions: 445*445*335mm Packing Quantity: 10 PCS Packing Weight: 14.8KG |

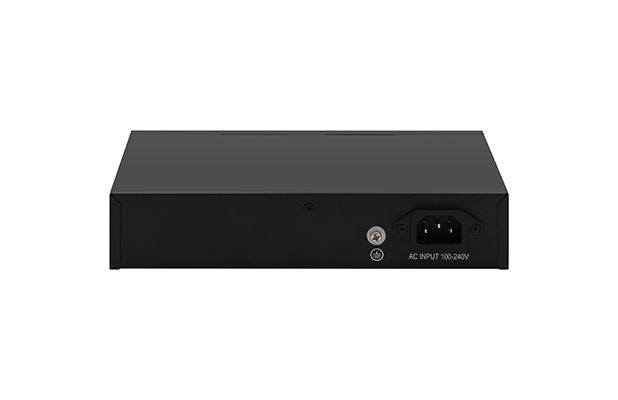

Power Voltage | Input Voltage: AC 100-240 V 50-60Hz Supply Power: 52V2.3A |
Power Consumption | ＜30W |
Package List | Switch 1 pc, Power cord 1 pc, User manual 1 pc, Certification 1 pc |
Order Info | |
ZX900-AFG-82NS | 10 Port Full Gigabit Intelligent Standard PoE Switch |
