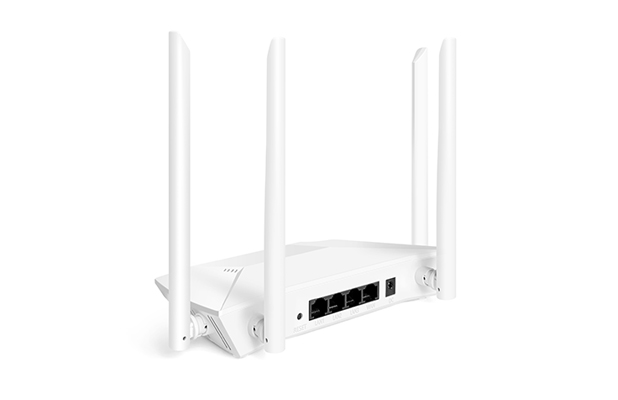

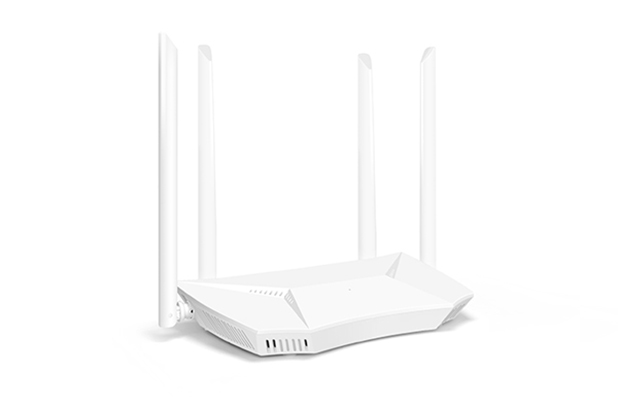

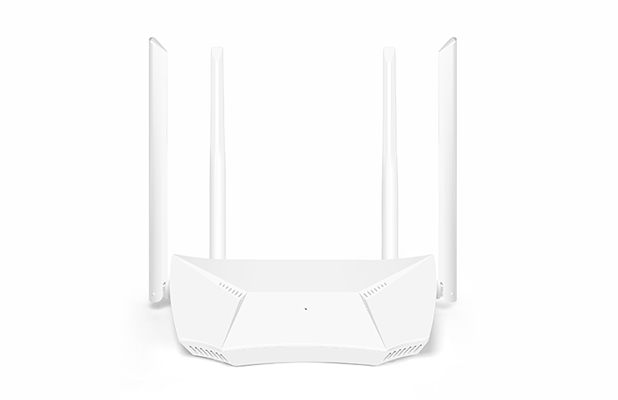

WR300K is a WiFi 300M high-cost-performance wireless communication product, which can meet the needs of small networks such as offices and homes for quick, stable, secure, and easy Internet access. It operates at 2.4GHz with 802.11b/g/n and provides speeds up to 300Mbps. It is equipped with 3*10/100M adaptive Ethernet LAN interfaces for internal LAN connection, and 1*10/100M adaptive Ethernet WAN interface for wired broadband connection.
Hardware configuration | |
Main Chip | MT7628KN |
Frequency | 575MHz |
Memory | 8MB |
Flash | 2MB |
Wireless Technology | 802.11b/g/n 300Mbps MIMO technology |

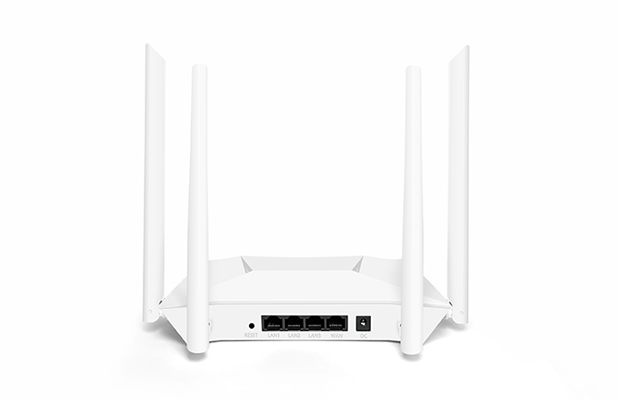

Device Interfaces | WAN*1 10/100Mbps adaptive Ethernet ports LAN*3 10/100Mbps adaptive Ethernet ports DC direct current power supply interface, suitable for power plug insertion with outer diameter of 4.0mm, inner diameter of 2.68mm, and length of at least 9.5mm. |
Buttons | Reset button for restoring factory settings, long press for 5 seconds to restore factory settings |
Indicators | Traffic light with red/green dual colors |
Antennas | External 2.4G 5dBi stick antennas *4 |
Power | DC 5V/1A power supply with positive outside and negative inside |
Operating/Storage Temperature | 0℃～40℃/-20℃～70℃ |
Operating/Storage Humidity | 5% to 90% (non-condensing) |
Dimensions | 183.*113.3*31.4mm |
Weight | 0.5kg |
WiFi Spec | |
Frequency Range | 802.11b/g/n:2.4~2.4835GHz |
Channel | 1、2、3、4、5、6、7、8、9、10、11、12、13 |
Modulation | 802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) |
Transmission Rate | 11b up11Mbps，11g up 54Mbps，11n up 300Mbps |
Receiver Sensitivity | 11b：≤-90±1.5dBm @1Mbps， ≤-84±1.5dBm @11Mbps 11g：≤-86±1.5dBm @6Mbps， ≤-69±1.5dBm @54Mbps 11n 20MHz：≤-85±1.5dBm @MCS0， ≤-67±1.5dBm @MCS7 11n 40MHz：≤-82±1.5dBm @MCS0， ≤-64±1.5dBm @MCS7 |
Transmit Power | 11b: ≥20±1.5dBm@11Mbps 11g: ≥20dBm±1.5dBm@54Mbps 11n: ≥20dBm±1.5dBm@MCS7 |
Software Functions | |
Working Mode | Routing mode |
Number of connected users | 16 Peoples |
Management mode | English/Chinese web remote management |
Status | -System status, interface status -User list -Blacklist |
Network | -Network configuration：LAN、WAN |
WiFi | WiFi switchWiFi nameEncryptionWiFi password Hide WiFiProtocolBandwidthChannel Signal strength |
System Management | -Management Password -System Time -Upgrade/Reset: Restore Factory Configuration, Download Backup Configuration, Upload Restore Configuration, Local Upgrade -System Logs -Reboot: Immediate Reboot, Scheduled Reboot |
Quick Setup | Internet Connection Type:-Wireless Configuration |
