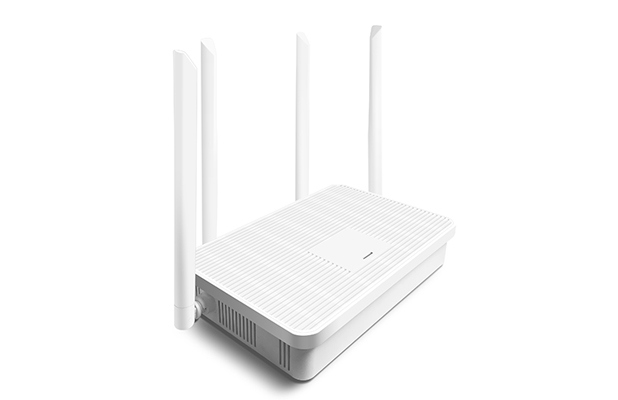

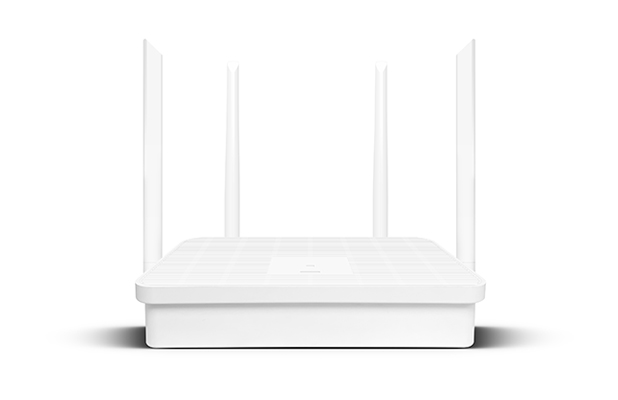

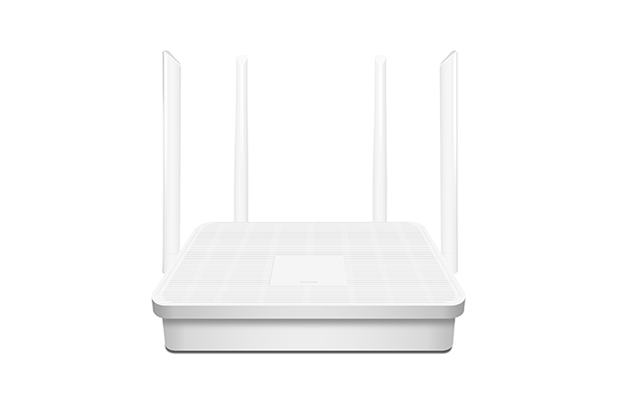

WR1203S is a new generation high-performance enterprise-level dual-band 1200M router that supports HW-NAT and 802.11ac technology. It achieves an Internet NAT forwarding speed of up to 900+Mbps. The 5.8G band provides a maximum access rate of 866.7Mbps, while the 2.4G band provides a maximum access rate of 300Mbps, meeting the demand for high-speed wireless internet access for up to 64 terminals simultaneously.
Hardware configuration | |
Main Chip | SF19A2890 |
Frequency | MIPS architecture, dual-core quad-thread 1GHz CPU |
Memory | 128MB |
Flash | 16MB |
Wireless Technology | 2.4G: 300Mbps with 802.11b/g/n MIMO technology 5.8G: 866.7Mbps with 802.11a/n/ac MIMO technology |

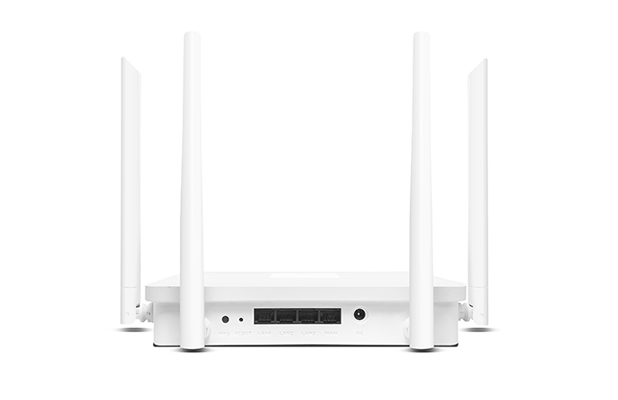

Device Interfaces | WAN1/LAN3 10/100/1000Mbps adaptive Ethernet ports DC power interface, compatible with power plugs with an outer diameter of 5.5mm, inner diameter of 2.1mm, and length of 9.5mm or above |
Buttons | Reset button for restoring factory settings, long press for 6 seconds to restore factory settings WPS button for easy password-free connection |
Indicators | Status indicator lights |
Antennas | External 2.4G 5dBi stick antennas *2 External 5G 5dBi stick antennas *2 |
Power | DC 12V/1A power supply with positive outside and negative inside |
Operating/Storage Temperature | 0℃～40℃/-20℃～70℃ |
Operating/Storage Humidity | 10% to 90% (non-condensing) / 5% to 90% (non-condensing) |
Dimensions | 20*12.5*3.6CM(Excluding antennas) |
Weight | 0.25KG |
WiFi Spec | |
Frequency Range | 2.4G：2.4~2.4835GHz 5G: UNII-1: 5.15~5.35GHz UNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz |
Channel | 2.4G: 1、2、3、4、5、6、7、8、9、10、11、12、13 5G: 36、40、44、48、52、60、64、149、153、157、161、165 |
Modulation | 802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) |
Transmission Rate | 11b up 11Mbps，11a/g up 54Mbps，11n up 300Mbps 11ac up 864.7Mbps |
Receiver Sensitivity | 2.4G: 11b：＜-82±1.5dBm @1Mbps， ＜-76±1.5dBm dBm@11Mbps 11g：＜-82±1.5dBm@6Mbps， ＜-65±1.5dBm @54Mbps 11n 20MHz：＜-82±1.5dBm@MCS0， ＜-64±1.5dBm @MCS7 11n 40MHz：＜-79±1.5dBm @MCS0， ＜-61±1.5dBm @MCS7 5G: 11a：＜-82±1.5dBm @6Mbps， ＜-65±1.5dBm @54Mbps 11n 20MHz：＜-82±1.5dBm@MCS0， ＜-64±1.5dBm @MCS7 11n 40MHz：＜-79±1.5dBm @MCS0， ＜-61±1.5dBm @MCS7 11ac 20MHz：＜-82±1.5dBm @MCS0， ＜-57±1.5dBm @MCS8 11ac 40MHz：＜-79±1.5dBm @MCS0， ＜-54±1.5dBm @MCS9 11ac 80MHz：＜-76±1.5dBm @MCS0， ＜-51±1.5dBm @MCS9 |
Transmit Power | 11b: 20dBm±1.5dBm@11Mbps 11g: 20dBm±1.5dBm@54Mbps 11n(20/40MHz): 17dBm±1.5dBm@MCS7 11ac(40/80MHz): 17dBm±1.5dBm@MCS9 |
Software Functions | |
Working Mode | Routing mode/Bridge mode |
Number of connected users | 64 Peoples |
Management mode | English web remote management/support for TR069 remote management |
Status | InternetRouterWiFiPrimary Network User Guest UserDHCP List |
Network | Ethernet：Network (RoutingBridge) Ethernet Setting (Dynamic IPStatic IPPPPoE) Ethernet Status LAN Setup: Lan: IP AddressSubnet MaskDHCP settingDNS Lease time Guest Network Address Pool |
Wireless | -WiFi: Dual frequency in one.4G&5G WPS switch 2.4G&5G: Status switchHide SSIDSSIDSecurity Encryption ModePassword Advanced Settings: ProtocolChannel Bandwidth ChannelTx power -Black and White List: Switch Mode switch (BlacklistWhitelist) Blacklist -WPS: 2.4G&5G SwitchPBC -Mesh: SwitchRole (AutomaticMain routeSatellite) Add satelliteFast roaming 2.4G&5G Set signal strength threshold -Relay mode: SwitchFrequency bandSSID(Scan) SecurityPasswordStatus |
Network Advanced | IPV6DDNSIPTVGuest NetworkParental Control VPN Client(PPTPL2TP)Hardware HNAT |
Firewall | Port ForwardingDMZ SettingsMAC Filtering IP FilteringDDOSURL Control |
Management | SNTP, Traffic control, Change password, Backup/Upgrade, Restart/Reset, LED switch, Logs |
Setup Wizard | WiFi-Network Configuration-Summary |
