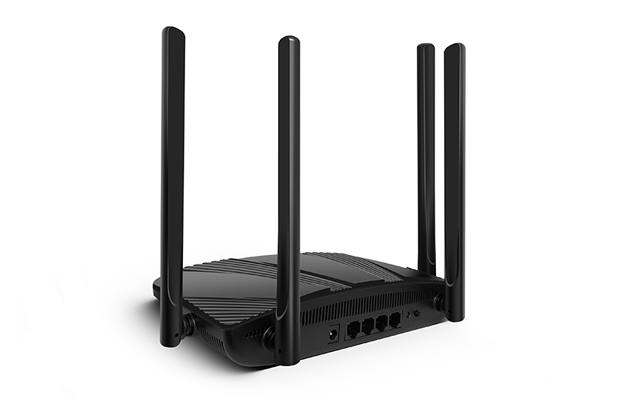

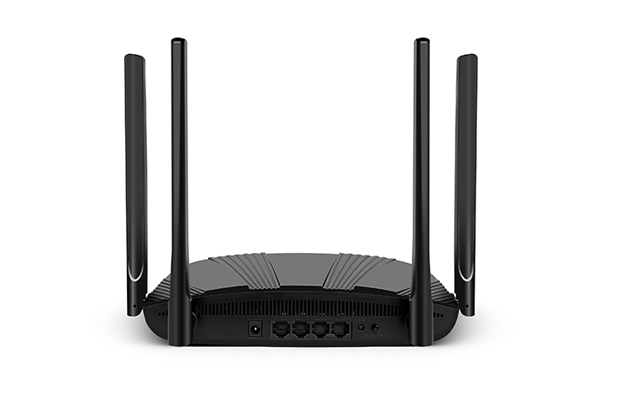

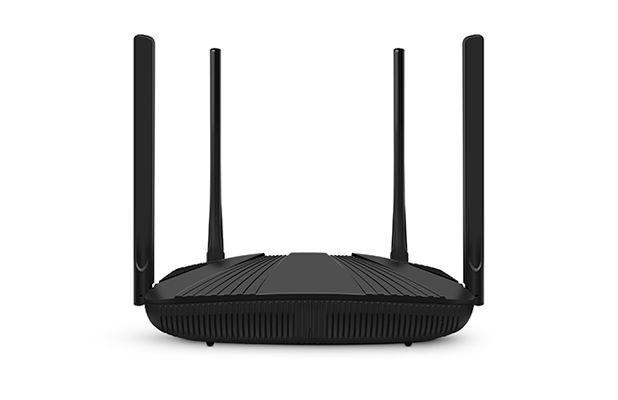

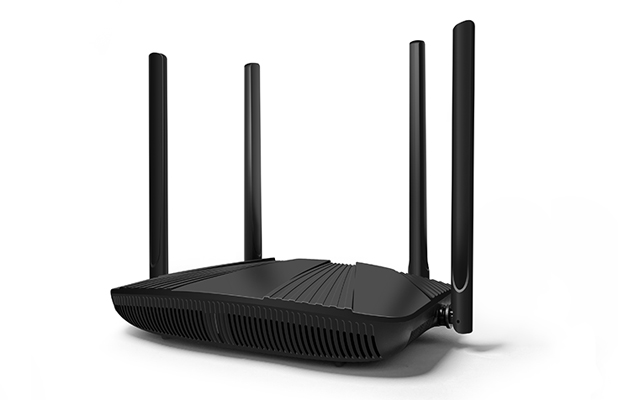

WR1800K is a high-performance enterprise-grade WiFi 6 router that supports 802.11ax technology. It operates in the 2.4GHz and 5.8GHz wireless frequency bands, meeting the demand for simultaneous high-speed wireless internet access for up to 128 users. With full Gigabit network interfaces, it can achieve a maximum wireless access speed of 573Mbps in 2.4GHz 802.11ax mode and 1201Mbps in 5.8GHz 802.11ax mode, with a total wireless rate of up to 1800Mbps.
Hardware configuration | |
Main Chip | MT7621A+MT7905DAN+MT7975DN High-performance enterprise-level chip |
Frequency | MIPS dual-core 880MHz |
Memory | 256MB |
Flash | 128MB |
Wireless Technology | - 2.4G WiFi 2*2 802.11b/g/n/ax (theoretical maximum speed up to 573Mbps) - 5.8G WiFi 2*2 802.11a/n/ac/ax (theoretical maximum speed up to 1201Mbps) - 1024QAM high-speed access rate, OFDMA high-density user access - OFDMA/MU-MIMO uplink/downlink - BSS Color spatial reuse - Space-time block code (STBC), low-density parity check (LDPC), beamforming TX/RX for uplink and downlink Power-saving features: single antenna standby technology, dynamic MIMO power-saving technology, enhanced automatic power-saving transmission technology, packet-by-packet power control technology, etc. |
Device Interfaces | - WAN*1/LAN*3 10/100/1000Mbps adaptive - DC power interface compatible with power plug with outer diameter of 5.5mm, inner diameter of 2.1mm, and length above 9.5mm |
Buttons | - Reset button for factory reset (long press for 6 seconds to reset) - WPS button for easy password-free connection |
Indicators | Status indicators |
Antennas | - External 2.4G 5dBi rubber rod antennas * 2 - External 5G 5dBi rubber rod antennas * 4 |
Power | DC 12V/1A, positive outer and negative inner |
Operating/Storage Temperature | -10℃～45℃/-20℃～70℃ |
Operating/Storage Humidity | 10% to 90% (non-condensing) / 5% to 90% (non-condensing) |
Dimensions | 262*177*180mm (including antennas) |
Weight | 680g |
WiFi Spec | |
Frequency Range | 2.4G：2.4~2.4835GHz 5G: UNII-1: 5.15~5.35GHz UNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz |
Channel | 2.4G: 1、2、3、4、5、6、7、8、9、10、11、12、13 5G: 36、40、44、48、52、60、64、149、153、157、161、165 |
Modulation | 802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) 802.11ax: OFDMA (BPSK,256-QAM, 1024-QAM) |
Transmission Rate | 11b up 11Mbps，11g up 54Mbps，11n up 300Mbps 11ac up 864.7Mbps，11ax 2.4G up 573Mbps， 11ax 5G up 1201Mbps |
Receiver Sensitivity | 2.4G: 11b：＜-119±1.5dBm @1Mbps， ＜-90±1.5dBm dBm@11Mbps 11g：＜-96±1.5dBm@6Mbps， ＜-78±1.5dBm @54Mbps 11n 20MHz：＜-96±1.5dBm@MCS0， ＜-76±1.5dBm @MCS7 11n 40MHz：＜-92±1.5dBm @MCS0， ＜-74±1.5dBm @MCS7 11ax 20MHz: ＜-96±1.5dBm @MCS0， ＜-66±1.5dBm @MCS11 11ax 40MHz: ＜-94±1.5dBm @MCS0， ＜-63±1.5dBm @MCS11 5G: 11a：＜-94±1.5dBm @6Mbps， ＜-78±1.5dBm @54Mbps 11n 20MHz：＜-94±1.5dBm@MCS0， ＜-74±1.5dBm @MCS7 11n 40MHz：＜-90±1.5dBm @MCS0， ＜-72±1.5dBm @MCS7 11ac 20MHz：＜-94±1.5dBm @MCS0， ＜-72±1.5dBm @MCS8 11ac 40MHz：＜-90±1.5dBm @MCS0， ＜-66±1.5dBm @MCS9 11ac 80MHz：＜-88±1.5dBm @MCS0， ＜-62±1.5dBm @MCS9 11ax 20MHz：＜-94±1.5dBm @MCS0， ＜-64±1.5dBm @MCS11 11ax 40MHz：＜-92±1.5dBm @MCS0， ＜-60±1.5dBm @MCS11 11ax 80MHz：＜-88±1.5dBm @MCS0， ＜-58±1.5dBm @MCS11 |
Transmit Power | 11b: 20dBm±1.5dBm@11Mbps 11g: 20dBm±1.5dBm@54Mbps 11n(20/40MHz): 20dBm±1.5dBm@MCS7 11ac(40/80MHz): 20dBm±1.5dBm@MCS9 11ax(20/40/80MHz) : 20dBm±1.5dBm@MCS11 |
Software Functions | |
Working Mode | Routing mode/Bridge mode |
Number of connected users | 128 Peoples |
Management mode | English web remote management/support for TR069 remote management |
Status | Internet\Router\WiFi\Primary Network User\ Guest User\DHCP List |
Network | Ethernet：Network (Routing\Bridge) \ Ethernet Setting (Dynamic IP\Static IP\PPPoE)\ Ethernet Status LAN Setup: Lan: IP Address\Subnet Mask\DHCP setting\DNS\ Lease time Guest Network Address Pool |
Wireless | -WiFi: Dual frequency in one\2.4G&5G WPS switch\ 2.4G&5G: Status switch\Hide SSID\SSID\Security\ Encryption Mode\Password\ Advanced Settings: Protocol\Channel Bandwidth\ Channel\Tx power -Black and White List: Switch\ Mode switch (Blacklist\Whitelist) \Blacklist -WPS: 2.4G&5G Switch\PBC -Mesh: Switch\Role (Automatic\Main route\Satellite) \ Add satellite\Fast roaming\ 2.4G&5G Set signal strength threshold -Relay mode: Switch\Frequency band\SSID(Scan)\ Security\Password\Status -Advanced Configuration: Band Streering\WLAN QOS\ WiFi5 Compatibility mode\WiFi timed reboot |
Network Advanced | IPV6\DDNS\IPTV\Guest Network\Parental Control\ VPN Client(PPTP\L2TP)\Hardware HNAT |
Features | ALG\Port Forwarding\DMZ Settings\MAC Filtering\ IP Filtering\DDOS\URL Control |
Management | SNTP\Change User Info\Backup & Upgrade\ Restart & Reset\LED Switch\Flow Control\System Log |
Setup Wizard | WiFi-Network Configuration-Summary |
Mesh Topo | Overall network device topology(IP\MAC\Medium) |
