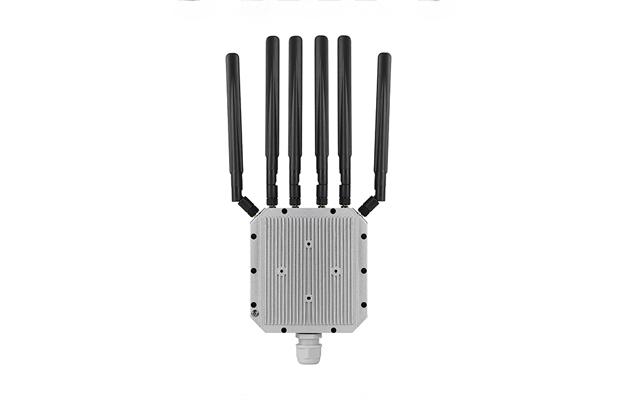

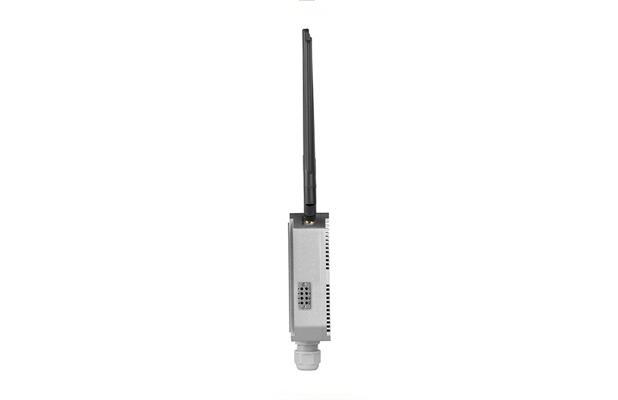

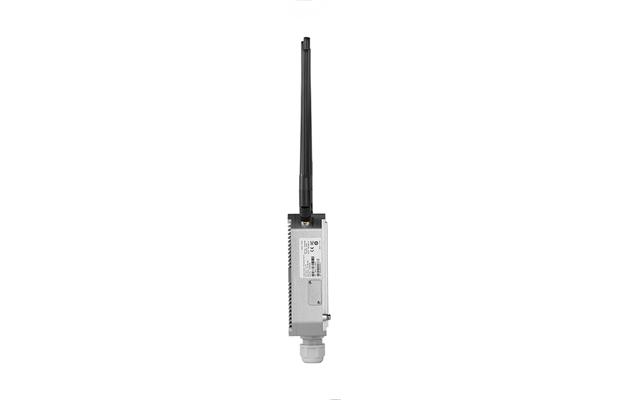

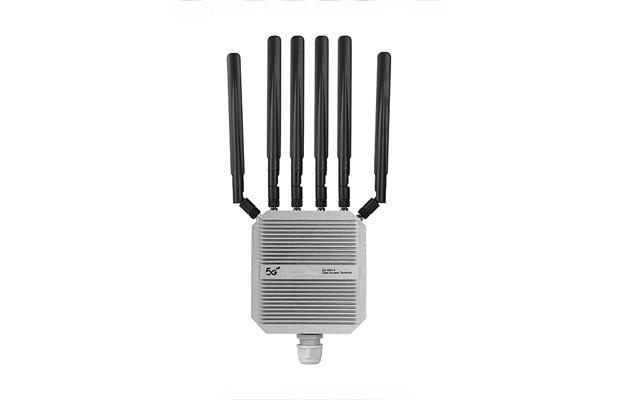

1、WOBICOM G8000 5G Smart Router system (CPE) , is based on brand - new embed platform , it can be satisfied with growing- up mobile connections requirements and provides the fast speed beyond your imagination.2、The CPE is compatible with NSA/SA dual - mode , suits to all network types all over the world , it means you just plug and play it and enjoy the ultra -fast broadband connection at any places.3、Outdoor 5G , the waterproof level is up to IP67 , the appearance is exquisite and beautiful , and it is suitable for various installation methods: wall hanging , pole holding.
Technical specifications
| Model | G8000 | |||||||||||||||||||||
| CPU | IPQ5018+SDX62 | |||||||||||||||||||||
| wiFi Frequency | 2.4G +5.8G | |||||||||||||||||||||
| wiFi standard | 2.4G:802 . 11b/g/n/AX , 5.8G:802.11b/g/n//AC/AX | |||||||||||||||||||||
| wiFi | 2.4GHz :600Mbps , 5.8G:2400Mbps | |||||||||||||||||||||
| 5G NR | 3GPP Release 16 NSA/SA Operation, sub- 6 GHz | |||||||||||||||||||||
| 5G Network Mode | NSA/SA | |||||||||||||||||||||
| 5G/4G Data Rate | 5G SA Transmission speed:2 . 1Gbps/900Mbps (up to ISPs) 5G NSA Transmission speed:2 . 5Gbps/650Mbps (up to ISPs) LTE : Down 1.0 Gbps; UP 200 Mbps | |||||||||||||||||||||
| 5G Frequency Bands | 5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 5G NR SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 MIMO Downlink: 4×4 MIMO On n1/n2/n3/n7/n25/n38/n40/n41/n48/n66/n77/n78/n79 | |||||||||||||||||||||
| 4G&3G Frequency Bands | Downlink cat 19/ uplink cat 18 LTE- FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 MIMO DL: 4×4 MIMO On B2/B4/B5/B12/B13/B14/B17/B25/B26/ B29/B30/B66/B41/B42/B43/B48/B71 WCDMA B1/ 2/ 4/ 5/ 8/ 19 | |||||||||||||||||||||
| Modulation Mode | 5G: GMSK/8PSK/BPSK/Qpsk/16QAM/64QAM/256QAM WIFl: 1024 -QAM / OFDMA | |||||||||||||||||||||
| Dimension | 145X130X45MM | |||||||||||||||||||||
| Interface | 1 2500 Mbps LAN 1 Reset Button 2 SIM Card slot (4FF SIM Card support SIM/USIM/UIM , standard 6 PIN SIM Card interface ,support 3v SIM Card and 1 . 8v SIM Card: internal) | |||||||||||||||||||||
| Reset | Reset (Long press 10 seconds to restore the factory settings) | |||||||||||||||||||||
| LED Indicator | Battery power, RF Signal , slM Signal , Sys signal | |||||||||||||||||||||
| Power Consumption | < 24W (POE 48V/1A) | |||||||||||||||||||||
| Environment | Operating Temperature : - 20℃ ~ +50℃ Storage Temperature: - 35℃ ~ +75℃ Humidity: 5% ~ 95% (Non condensation) | |||||||||||||||||||||
| Weight | 1.8KG (Includes color box accessories) | |||||||||||||||||||||
