2.4GHz Frequency Band

2.4GHz ~ 2.484GHz (802.11 b/g/n)

5GHz Frequency Band

5.150GHz～5.850GHz (802.11 a/n/ac)

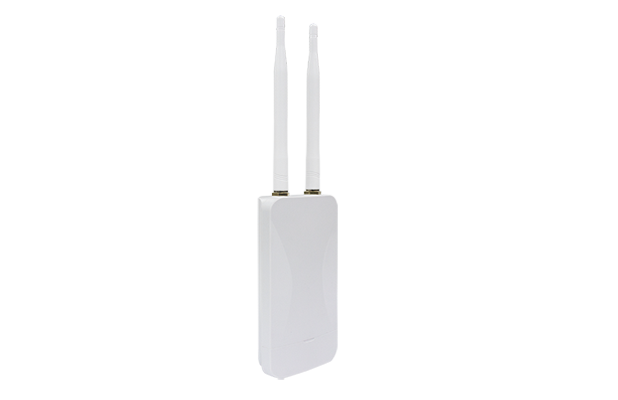

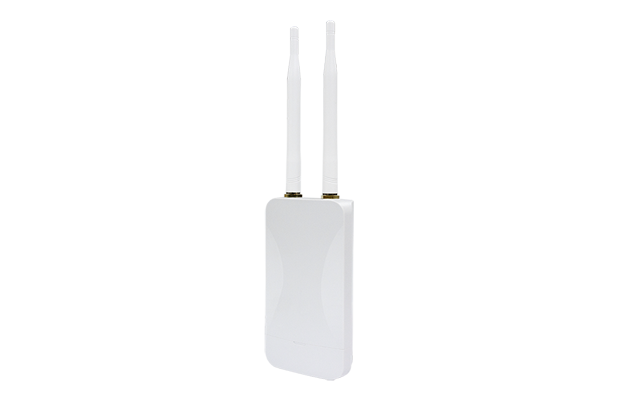

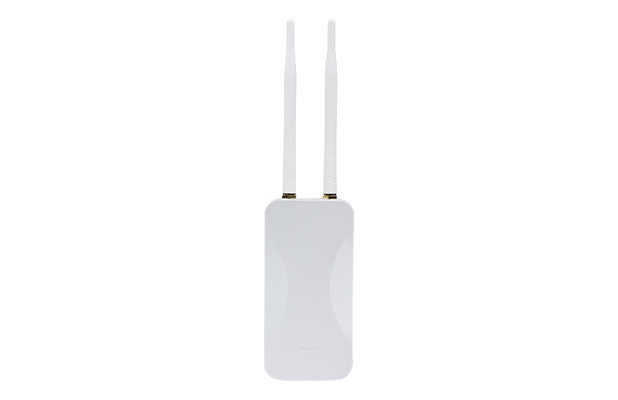

Antenna

2×2.4GHz/5GHz omnidirectional dual-band antennas, each with a gain of 5d Bi

Wireless Speed

2.4GHzProvides a maximum access rate of 300Mbps, 5GHzProvides a maximum access
rate of 867Mbps

Device Capacity

128

2.4GHz Tx Power

<24±2dBm

5GHz Tx Power

<21±2dBm

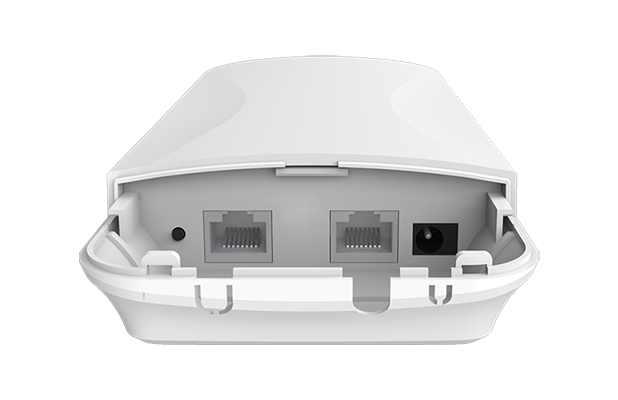

Interface

1× 10/100/1000Mbps WAN port, support 48V PoE
1× 10/100/1000Mbps LAN port

Buttons

Reset button (press and hold for 6-10 seconds to restore to factory default settings)

Status indicator

PWR light, WAN port light, LAN port light, 2.4GHz light, 5GHz light

Power Supply

PoE 802.3at, DC2.0 12V/1A

Power Consumption

< 9W

Dimensions

196mm×86mm×40mm

Net Weight

0.4kg

Work Environment

Normal operating temperature: -30°C to 55°C
Storage temperature: -40°C to 70°C
Humidity: 5% to 95% (no condensation)

Protection Level

IP65

Software Features

Front Page

Working mode: Fat AP mode and Thin AP mode
Wireless AP download rate, wireless AP upload rate, running time
Device information, device description, intranet information, WIFI information

Support Mode

Gateway mode: The device is connected to the WAN through the WAN port and then accesses
the Internet using static IP, DHCP or PPPoE
AP mode: The device covers other clients and devices with wireless network signals and uses
Ethernet to connect to other routers to access the WAN.

Wireless Capabilities

SSID Broadcast
Number of SSIDs: 4 (2.4GHz) + 4 (5GHz), support Chinese SSID
Hide SSID function
Wireless encryption: OPEN, WPA/WPA2PSK-TKIPAES, WPA3PSK-AES
Wireless MAC address filtering: support whitelist
WiFi timer off function
User isolation: isolation between wireless networks and isolation within APs
Transmit power setting
Wireless client number limit
QoS: WMM

Network Features

Connection method: static address, obtained from the management server, obtained from the
gateway
DHCP server: It can be a built-in DHCP server or an external DHCP server
Cloud Platform Server
Firewall function
PPPoE function: Support PPPoE dial-up function

Device Management

Backing up configuration information
Restore configuration information
Restore factory settings
Restart includes scheduled restart and immediate restart
Firmware Upgrade
Time management includes system display time and time synchronization
System log
Fat and thin AP switching function
