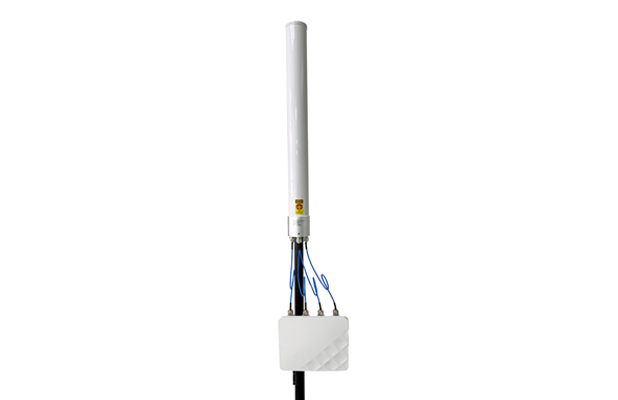

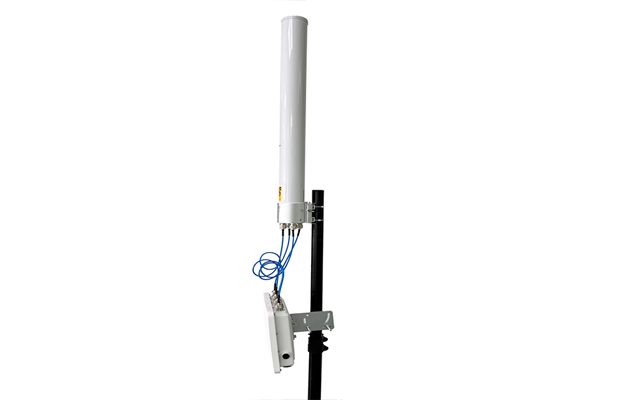

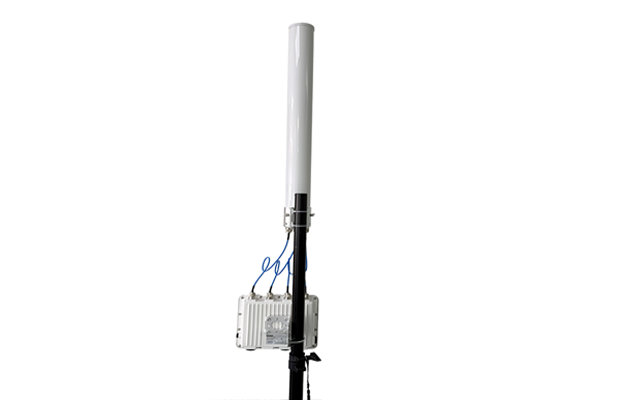

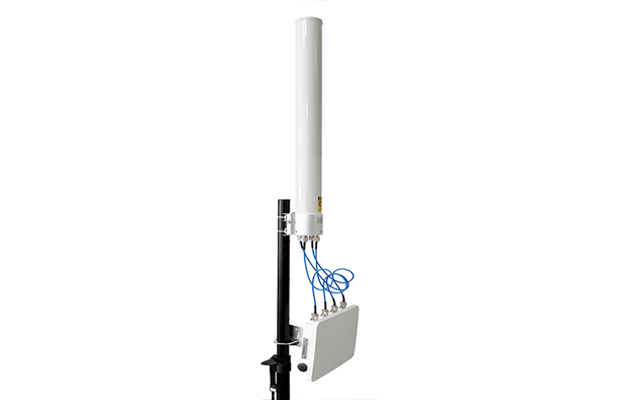

WOBICOM® N850M is a high-performance dual-band 802.11AX product that can provide 2.4GHz and 5GHz dual-band wireless services. The 2.4GHz frequency can provide a maximum access rate of 574Mbps and the 5GHz frequency can provide a maximum access rate of 2402Mbps.
| Specifications | ||||
| 2.4GHz Frequency Band | 2.4GHz ~ 2.484GHz (802.11 b/g/n/ax) | |||
| 5GHz Frequency Band | 5.150GHz～5.850GHz (802.11 a/n/ac/ax) | |||
| Antenna | 2.4GH&5GHz omnidirectional antennas, gain: 10dBi | |||
| WiFi Coverage Range | WiFi Range 1km diameter(line of sight without barrier) | |||
| Wireless Speed | 2.4GHz provides a maximum access rate of 574Mbps, and 5GHz provides a maximum access rate of 2402Mbps | |||
| Device Capacity | 128 | |||
| 2.4GHz Tx Power | <26±2dBm | |||
| 5GHz Tx Power | <25±2dBm | |||
| Interface | 1 × 10/100/1000Mbps SFP optical port 1 × 10/100/1000Mbps WAN port, support PoE 48V input 1 × 10/100/1000Mbps LAN port | |||
| Button | reset button(Press and hold for 6-10 seconds to restore to factory default settings) | |||
| Status indicator | Silk-screen PWR: Power indicator light (green, always on when powered on; off when not powered on) Silk-screen SFP: Gigabit optical port indicator (green, off when not connected, always on when connected, flashing when data is sent or received) Silkscreen WAN: Gigabit WAN port indicator (green, off when not connected, always on when connected, flashing when sending or receiving data) Silkscreen LAN: Gigabit LAN port indicator (green, off when not connected, always on when connected, flashing when sending or receiving data) Silkscreen 5G: 5GHz status (green, 5GHz WiFi is on, always on, data is sent and received, flashing, WiFi is off, off) Silkscreen 2.4G: 2.4GHz status (green, 2.4GHz WiFi is on, always on, data is sent and received, flashing, WiFi is off, off) | |||
| Power Supply | PoE 802.3at, DC2.0 12V/2A | |||
| Power Consumption | <18W | |||
| Dimensions | 243.2mm × 218.3mm × 68.3mm | |||
| Net Weight | 1.825kg | |||
| Work Environment | Normal operating temperature: -40°C to 70°C Storage temperature: -40°C to 70°C Humidity: 5% to 95% (no condensation) | |||
| Protection Level | IP67 | |||
| Software Features | ||||
| Front Page | Working mode: Fat AP mode and Thin AP mode Wireless AP download rate, wireless AP upload rate, running time Device information, device description, intranet information, WIFI information | |||
| Support Mode | Gateway mode: The device is connected to the WAN through the WAN port and then accesses the Internet using static IP, DHCP or PPPoE AP mode: The device covers other clients and devices with wireless network signals and uses Ethernet to connect to other routers to access the WAN. | |||
| Wireless Capabilities | SSID Broadcast Number of SSIDs: 4 (2.4GHz) + 4 (5GHz), support Chinese SSID Hide SSID function Wireless encryption: OPEN, WPA/WPA2PSK-TKIPAES, WPA3PSK-AES Wireless MAC address filtering: support whitelist WiFi timer off function User isolation: isolation between wireless networks and isolation within APs Transmit power setting Wireless client number limit QoS: WMM | |||
| Network Features | Connection method: static address, obtained from the management server, obtained from the gateway DHCP server: It can be a built-in DHCP server or an external DHCP server Cloud Platform Server Firewall function PPPoE function: Support PPPoE dial-up function | |||
| Device Management | Backing up configuration information Restore configuration information Restore factory settings Restart includes scheduled restart and immediate restart Firmware Upgrade Time management includes system display time and time synchronization System log Fat and thin AP switching function | |||
