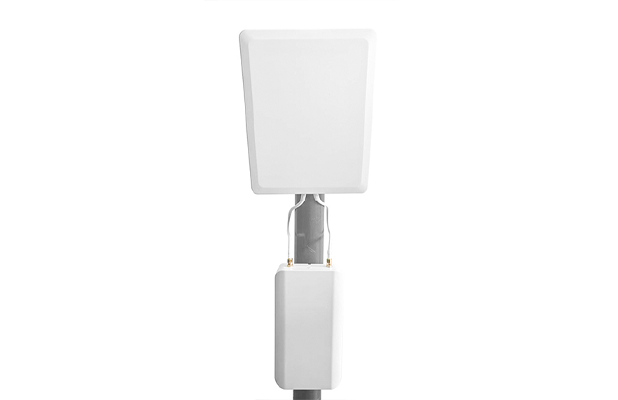

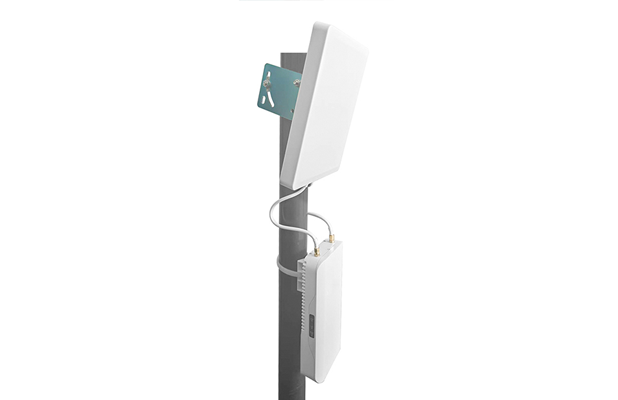

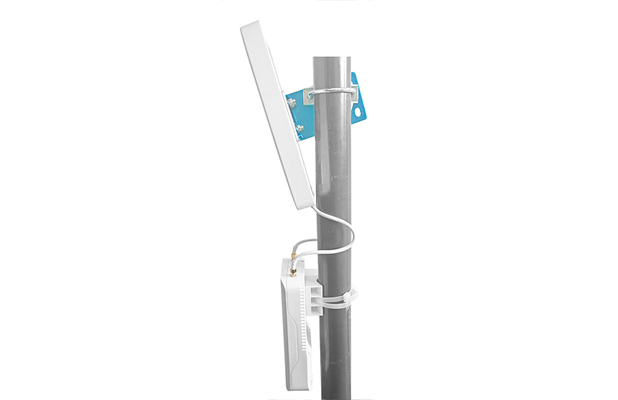

WOBICOM® N600-D is an outdoor dual-band WiFi 6 (802.11ax) wireless AP. It supportsconcurrent 2.4G and 5G bands with a total wireless rate of up to 3047.5Mbps — 573.5Mbps for 2.4G and 2474Mbps for 5G and can serve up to 128 users. Equipped with full Gigabit Ethernet ports and 802.3af/at PoE, it enables easyoutdoor deployment. It features high performance, gain, sensitivity, largebandwidth, low latency, and high-density access, improving coverage andtransmission stability. With an IP65-rated shell, it withstands harsh outdoor conditions including wind, rain, dust, and sun. External SMA connectors allow flexible use ofomnidirectional or directional antennas.
| Technical Specifications | ||
| Hardware configuration | ||
| Main Chip | IPQ5018+QCN6102+YT8521SC-CA | |
| Frequency | Quad-core ARM® Cortex-A53 1GHz | |
| Memory | 256MB | |
| Flash | 128MB | |
Wireless Technology | - 2.4G WiFi 2*2 802.11b/g/n/ax (theoretical maximum rate up to 573.5Mbps) - 5.8G WiFi 2*2 802.11a/n/ac/ax (theoretical maximum rate up to 2474Mbps) - Dynamic Bandwidth Switching, Beamforming - 1024QAM ultra-fast access rate, OFDMA ultra-high-density user access - MU-OFDMA: 4 Users (Uplink) / 8 Users (Downlink) - MU-MIMO: 2 Users (Uplink/Downlink) - BSS Color, OBSS-PD, SRG & SRP for Spatial Reuse - Space-Time Block Coding (STBC), Low-Density Parity-Check (LDPC), Uplink/Downlink Beamforming (Beamformer TX/RX) - Power Saving: Single-Antenna Standby, Dynamic MIMO Power Saving, Enhanced Automatic Power-Saving Transmission, Per-Packet Power Control | |
| Interfaces | WAN PoE*1/LAN*1 10/100/1000Mbps adaptive RP-SMA-K(Dual-band integrated; SMA connector (external thread, inner pin))*2 | |
| Button | Reset button for factory reset (long press for 6 seconds to reset), insert WAN port. | |
| Indicators | WAN, LAN, STAT | |
| Power | 48V 802.3af/at PoE | |
| Operating/Storage Temperature | -30℃~55℃/-40℃~70℃ | |
| Operating/Storage Humidity | 10%～90%(non-condensing) / 5%～90%(non-condensing) | |
| Dimensions | 184.97*101.00*41.00mm | |
| Weight | N/A | |
| WiFi Spec | ||
| Frequency Range | 2.4G：2.4~2.4835GHz 5G: UNII-1: 5.15~5.35GHz UNII-2: 5.47~5.725GHz UNII-3: 5.725~5.825GHz | |
| Channel | 2.4G: 1 、2 、3 、4 、5 、6 、7 、8 、9 、10 、11 、12 、13 5G: 36 、40 、44 、48 、52 、60 、64 、149 、153 、157、 161 、165 | |
| Modulation | 802.11b: DSSS (DQPSK, DBPSK, CCK) 802.11g: OFDM (BPSK, QPSK,16-QAM) 802.11n: OFDM (BPSK, QPSK,16-QAM, 64-QAM) 802.11ac: OFDM (BPSK, QPSK,64-QAM, 256-QAM) 802.11ax: OFDMA (BPSK,256-QAM, 1024-QAM) | |
| Transmission Rate | 11b up11Mbps, 11g up 54Mbps, 11n up 300Mbps, 11ac up 864.7Mbps， 11ax 2.4G up 573.5Mbps， 11ax 5G up 2474Mbps | |
Receiver Sensitivity | 2.4G: 11b：＜-99±1.5dBm @1Mbps， <-90±1.5dBm d Bm@11Mbps 11g：＜-96±1.5dBm@6Mbps， <-78±1.5dBm @54Mbps 11n 20MHz：＜-96±1.5dBm@MCS0， <-76±1.5dBm @MCS7 11n 40MHz：＜-92±1.5dBm @MCS0， <-74±1.5dBm @MCS7 11ax 20MHz: ＜-96±1.5dBm @MCS0， <-66±1.5dBm @MCS11 11ax 40MHz: ＜-94±1.5dBm @MCS0， <-63±1.5dBm @MCS11 5G: 11a：＜-94±1.5dBm @6Mbps， <-78±1.5dBm @54Mbps 11n 20MHz：＜-94±1.5dBm@MCS0， <-74±1.5dBm @MCS7 11n 40MHz：＜-90±1.5dBm @MCS0， <-72±1.5dBm @MCS7 11ac 20MHz：＜-94±1.5dBm @MCS0， <-72±1.5dBm @MCS8 11ac 40MHz：＜-90±1.5dBm @MCS0， <-66±1.5dBm @MCS9 11ac 80MHz：＜-88±1.5dBm @MCS0， <-62±1.5dBm @MCS9 11ax 20MHz：＜-94±1.5dBm @MCS0， <-64±1.5dBm @MCS11 11ax 40MHz：＜-92±1.5dBm @MCS0， <-60±1.5dBm @MCS11 11ax 80MHz：＜-88±1.5dBm @MCS0， <-58±1.5dBm @MCS11 | |
Transmit Power | 11b: 23dBm±1.5dBm@11Mbps 11g: 23dBm±1.5dBm@54Mbps 11n(20/40MHz): 23dBm±1.5dBm@MCS7 11ac(40/80/160MHz): 23dBm±1.5dBm@MCS9 11ax(20/40M) : 23dBm±1.5dBm@MCS11 11ax(80/160M) : 20dBm±1.5dBm@MCS11 | |
| Software Functions | ||
| Working Mode | Router Mode, AP Mode, Repeater Mode | |
| Capacity | 128 Users | |
| Management mode | English WEB / Cloud platform remote management | |
| Overview | Current Device: Name, Ver, Model, Running Time, Time, Online Clients AP Wired Port: WAN/LAN Status Wireless Status: 2.4/5GHz Protocol, Bandwidth, Channel, SSID, Encryption, Password Online Devices: Online Devices List (Wired/Wireless) Language: Chinese/English | |
| Online Terminal | Detailed List of All/Wired/Wireless Online Devices | |
| WLAN | AP List: Name, Group, IP, MAC, Status, Model, Online Time, Running Time, User, Version, Channel, Operate(Manage, Reboot, Reset, Migrate Group, Delete) WiFi: 2.4G/5G Switch, WiFi, Authentication, Password, Hide Switch, Clients Isolation, VLAN, MAX Clients Wireless Black and White List Roaming: Switch, 2.4G/5G (Access Threshold, Exclusion Threshold, Roaming Sensitivity) IPTV/VLAN: Switch, VLAN ID, Select the effective AP list | |
| Configuration | Overview: Memory Utilization, Online Devices, | |
| (in the AP List) | Networking Status, Device Time, Running Time, Device Information (Model, Device Name, Role, Work Mode), Wireless Information (2.4G/5G SSID, Encryption, Password ), Port Information (Status, IP, Negotiation) WAN: Work Mode, Connection Type, DNS Setup RF Settings: 2.4G/5G Configuration (Switch, SSID Isolation, Protocol, Bandwidth, Channel, Power) IPv6: Switch, WAN Connection Type, LAN Nominated Type, Prefix Network Diagnosis: Ping/Tracert Management: - Management: Backup And Import, Restore Factory - Upgrade: Local Upgrade - Reboot: Reboot Now - System Log | |
| Global Network | Time: Current Time, Time Zone, NTP Time Synchronization Timing Reboot: Daily, Weekly, Monthly Password: Upgrade: Online Upgrade/Local Upgrade Led: Switch | |
| Setup Wizard | Controller Function Switch - Internet WiFi Settings - Configuration Confirmation | |
